MB ASUS B840 AMD S-AM5 9A GEN /4X DDR5 7600 /HDMI /2X DP /2X USB 3.2 /MICRO ATX /GAMA MEDIA

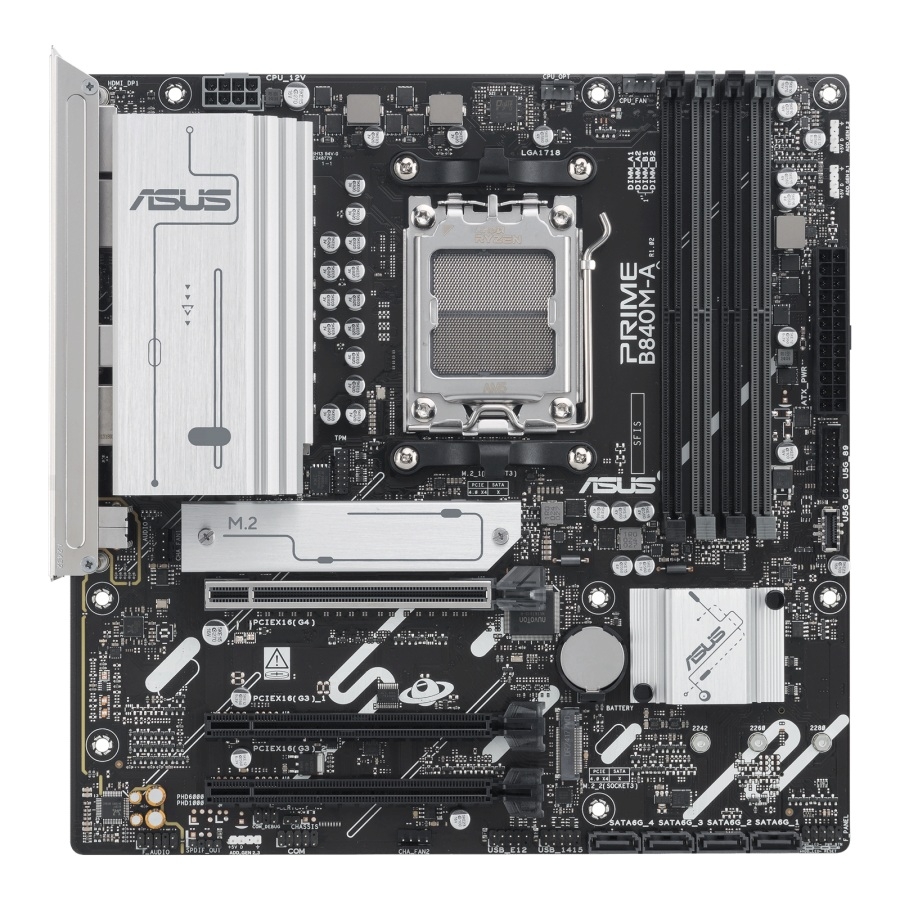

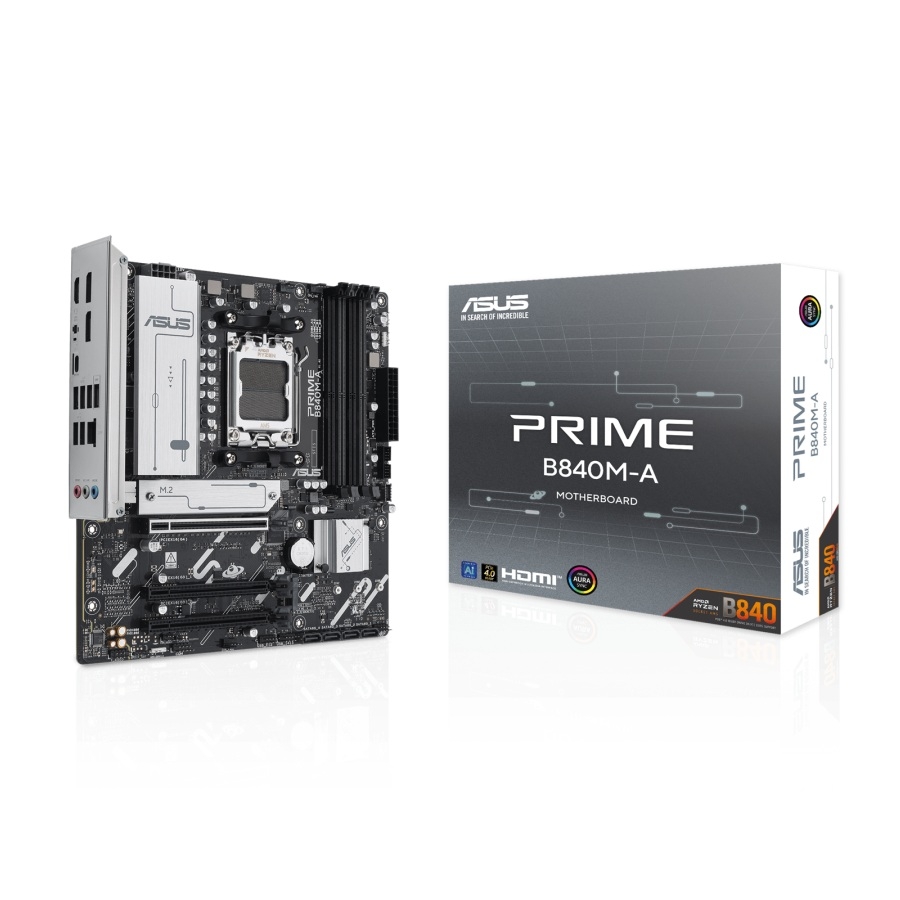

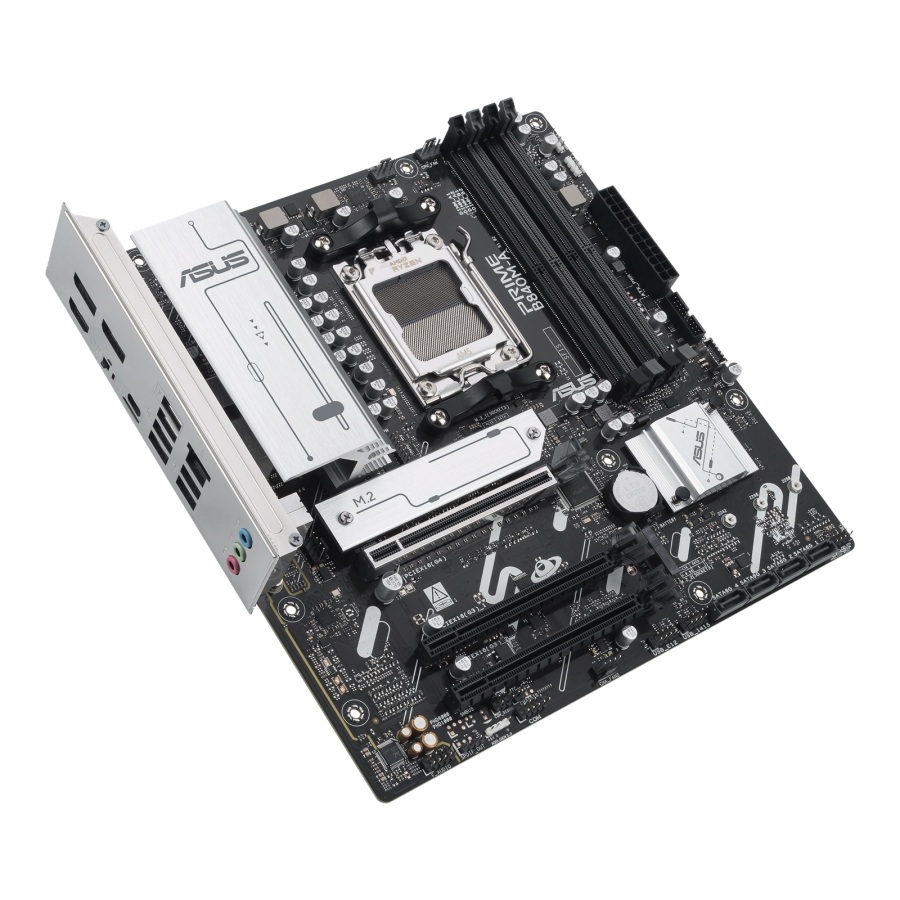

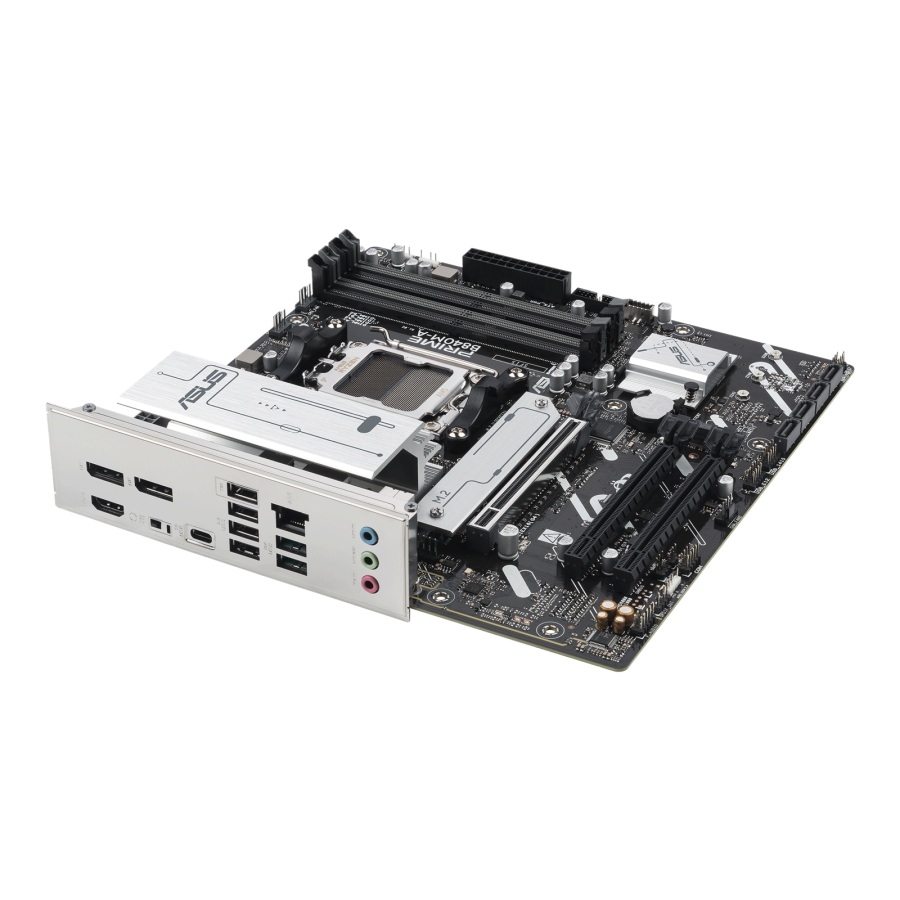

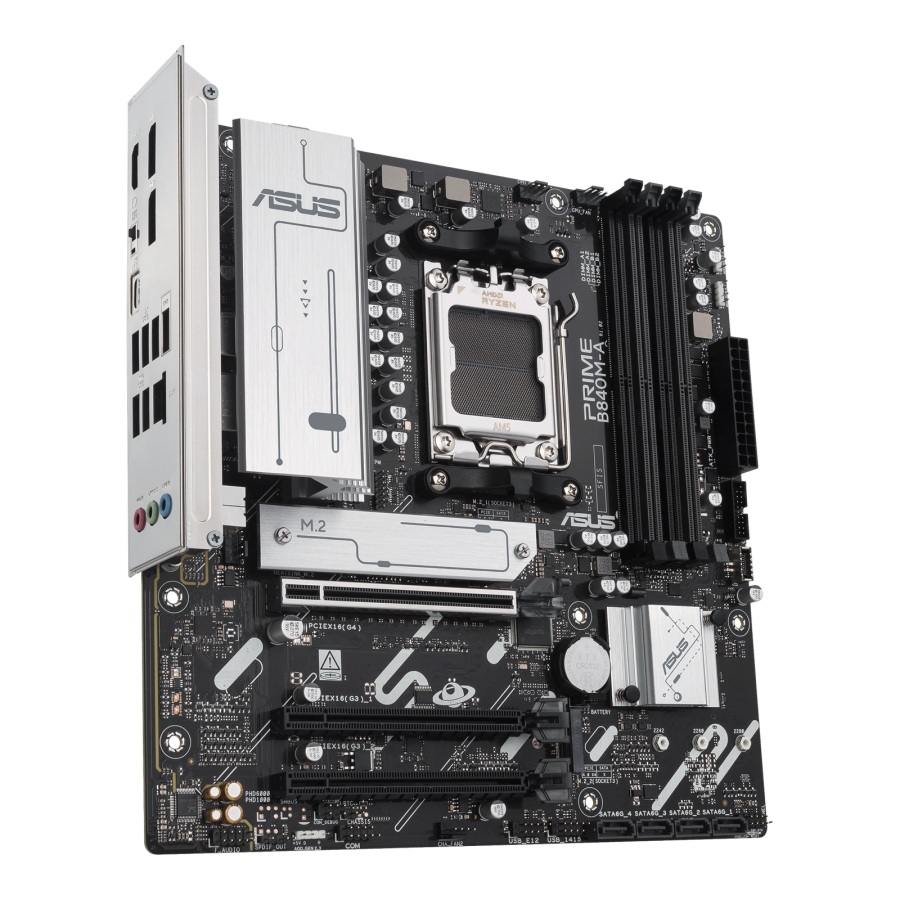

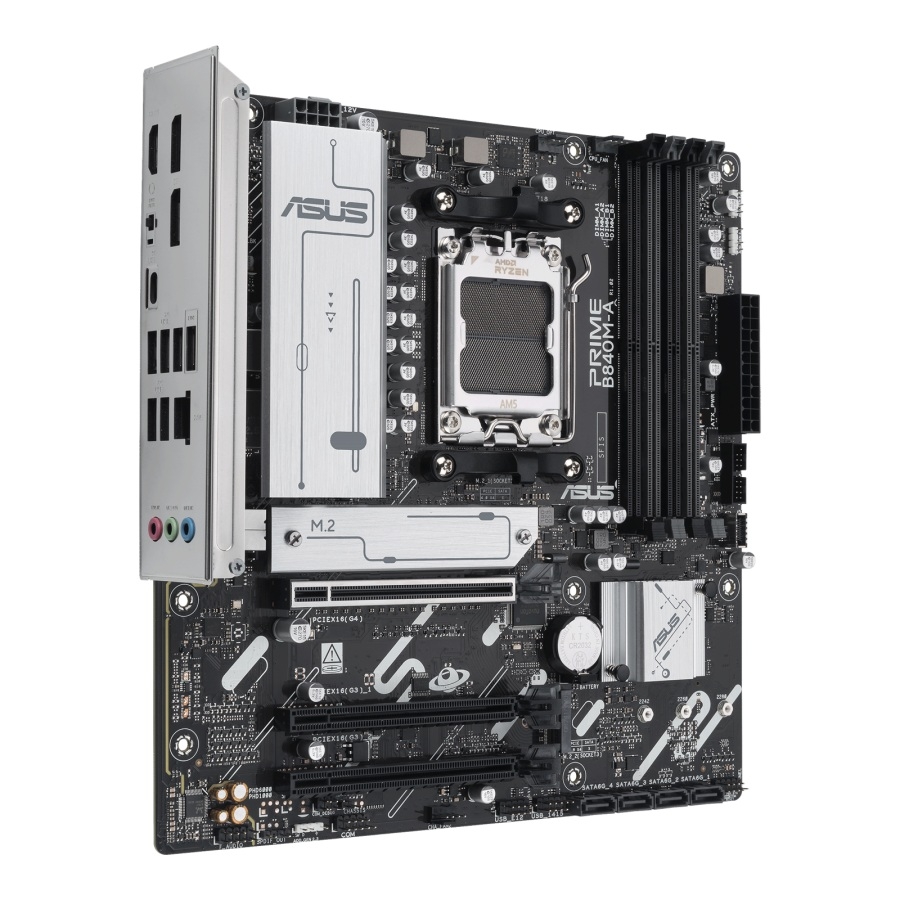

PRIME B840M-ALAS PLACAS BASE DE LA SERIE ASUS PRIME ESTáN DISEñADAS POR EXPERTOS PARA LIBERAR TODO EL POTENCIAL DE LOS PROCESADORES AMD RYZEN 9000 SERIES.LA PLACA BASE PRIME B840M-A OFRECE A LOS USUARIOS Y A LOS ENSAMBLADORES DE PC UNA VARIEDAD DE OPTIMIZACIONES DE RENDIMIENTO A TRAVES DE FUNCIONES INTUITIVAS DE SOFTWARE Y FIRMWARE.ESTA DISEñADA PARA SER COMPATIBLE CON PC CON IA AVANZADA, OFRECIENDO LA POTENCIA Y LA CONECTIVIDAD NECESARIAS PARA APLICACIONES DE IA EXIGENTES. PRIME B840M-ACPU AMD SOCKET AM5 FOR AMD RYZEN™ 9000 & 8000 & 7000 SERIES DESKTOP PROCESSORSCHIPSET AMD B840 CHIPSETMEMORY 4 X DIMM SLOTS, MAX. 256GB, DDR5 - SUPPORTS UP TO 7600+MT/S (OC) WITH RYZEN™ 9000 & 8000 & 7000 GRAPHICS 2 X DISPLAYPORT; 1 X HDMI™ PORTEXPANSION SLOTS:AMD RYZEN™ 9000 & 7000 SERIES DESKTOP PROCESSORS*1 X PCIE 4.0 X16 SLOT (SUPPORTS X16 MODE)AMD RYZEN™ 8000 SERIES DESKTOP PROCESSORS1 X PCIE 4.0 X16 SLOT (SUPPORTS X8/X4 MODE)**AMD B840 CHIPSET2 X PCIE 3.0 X16 SLOTS (SUPPORT X1 MODE)STORAGE:TOTAL SUPPORTS 3 X M.2 SLOTS AND 4 X SATA 6GB/S PORTSAMD RYZEN™ 9000 & 7000 SERIES DESKTOP PROCESSORSM.2_1 SLOT (KEY M), TYPE 2280 (SUPPORTS PCIE 4.0 X4 MODE)M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE)AMD RYZEN™ 8000 SERIES DESKTOP PROCESSORSM.2_1 SLOT (KEY M), TYPE 2280 (SUPPORTS PCIE 4.0 X4 MODE)M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4/X2 MODE)*AMD B840 CHIPSETM.2_3 SLOT (KEY M), TYPE 2280 (SUPPORTS PCIE 3.0 X4 MODE)4 X SATA 6GB/S PORTS* SPECIFICATIONS VARY BY CPU TYPES.AMD RAIDXPERT2 TECHNOLOGYRYZEN™ 9000 SERIES PROCESSORS: RAID 0/1/5/10RYZEN™ 8000 SERIES PROCESSORS: RAID 0/1RYZEN™ 7000 SERIES PROCESSORS: RAID 0/1/10ETHERNET 1 X REALTEK 2.5GB ETHERNET; ASUS LANGUARDBACK PANEL I/O PORTS2 X USB 10GBPS PORTS (2 X TYPE-A)1 X USB 5GBPS PORT (1 X USB TYPE-C®)4 X USB 2.0 PORTS (4 X TYPE-A)2 X DISPLAYPORT1 X HDMI™ PORT1 X REALTEK 2.5GB ETHERNET PORT3 X AUDIO JACKS1 X BIOS FLASHBACK™ BUTTONBIOS 256 MB FLASH ROM, UEFI AMI BIOSMANAGEABILITY WOL BY PME, PXEOPERATING SYSTEM WINDOWS 11, WINDOWS 10 64-BITFORM FACTOR MICRO-ATX FORM FACTOR 9.6 INCH X 9.6 INCH (24.4 CM X 24.4 CM)
